TOPS Code/Class:	HQA		Previous	Next
TOPS Category: ?This is my own (unofficial) means to categorise TOPS codes based on what they relate to and whether they are long (4 characters, i.e. including sub-codes) or short (3 characters)	SW - Short Code, Wagons	In selection ?This works on your last-used TOPS selection, including any filters and sort orders. Buttons will not show if the current TOPS code was not in your last selection, or if you are at the beginning or end of the data set.
TOPS GENKOC: ?The first character of a TOPS code is known as the GENKOC and indicates the general type of rolling stock (e.g. 1xx are DMUs).	H - Hopper Wagons	Overall ?This works on the overall TOPS code list without any filtering or sorting applied.
TOPS BRAKTY: ?The third character of many TOPS codes is the BRAKTY, indicating the type of braking equipment fitted (e.g. A indicates air brakes).	A - Air brakes
Description:	Bogie 'Autoballaster' Hopper
Numbers: ?Numbers are only shown where the ranges were limited. Otherwise, refer to the listings section below. The letter r after the numbers indicates this is a range, with not all numbers in the sequence used.
Status:
Date On:
Origins:
Date Off:
Destiny:
Key Photo:
Icon:

Sub-codes ?If this code had any sub-codes, they will be listed here.

HQA-A	Bogie 'Autoballaster' Hopper
HQA-B	Bogie 'Autoballaster' Hopper
HQA-C	Bogie 'Autoballaster' Hopper
HQA-D	Bogie 'Autoballaster' Hopper (Outer)
HQA-E	Bogie 'Autoballaster' Hopper (Inner)
HQA-F	Bogie 'Autoballaster' Hopper (Outer with Generator)
HQA-G	Bogie 'Autoballaster' Hopper (Outer)
HQA-H	Bogie 'Autoballaster' Hopper (Inner)
HQA-J	Bogie 'Autoballaster' Hopper (Outer with Generator)
HQA-K	Bogie 'Autoballaster' Hopper (Outer with Generator)
HQA-L	Bogie 'Autoballaster' Hopper (Inner)
HQA-M	Bogie 'Autoballaster' Hopper (Outer)

Designs/Diagrams ?Design codes and diagrams related to this code (and any sub-codes where relevant) are listed here.
9 designs/diagrams currently listed against this TOPS code/class (including any sub-codes).

Design	Class	Series	Description	Status
HQ001D	HQA-D	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Outer)	Current
HQ001E	HQA-E	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Inner)	Current
HQ001F	HQA-F	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Outer with Generator)	Current
HQ001G	HQA-G	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Outer)	Current
HQ001H	HQA-H	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Inner)	Current
HQ001J	HQA-J	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Outer with Generator)	Current
HQ003A	HQA-K	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Outer with Generator)	Current
HQ003B	HQA-L	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Inner)	Current
HQ003C	HQA-M	BR TOPS Wagon Design Code	Bogie 'Autoballaster' Hopper (Outer)	Current

Batches ?Batches of numbers built or converted to this TOPS code are listed below. Note that only codes that were wholly to this code will appear, otherwise refer to the listings section for other numbers.
There are 9 batches recorded as being wholly to this TOPS code (including any sub-codes).

Numbers	Class	Design	Type	Qty	Origin	Built/Converted	Date/s	Lot
380001-380038	HQA-A		64.3t Bogie Autoballaster Hopper (Outer)	38	New	RFS, Doncaster	2001
380101-380214	HQA-C		64.4t Bogie Autoballaster Hopper (Inner)	114	New	RFS, Doncaster	2001
380301-380338	HQA-B		71t Bogie Autoballaster Hopper (Outer with Generator)	38	New	RFS, Doncaster	2001
380401-380410	HQA-F	HQ001F	64.3t Bogie Autoballaster Hopper (Outer with Generator)	10	New	Wabtec, Doncaster	2004
380501-380510	HQA-D	HQ001D	64.3t Bogie Autoballaster Hopper (Outer)	10	New	Wabtec, Doncaster	2004
380601-380630	HQA-E	HQ001E	64.3t Bogie Autoballaster Hopper (Inner)	30	New	Wabtec, Doncaster	2004
380701/380706	HQA-K	HQ003A	59.9t Bogie Autoballaster Hopper (Outer with Generator)	2	New	Wabtec, Doncaster	2006
380702-380709r	HQA-L	HQ003B	59.9t Bogie Autoballaster Hopper (Inner)	6	New	Wabtec, Doncaster	2006
380705/380710	HQA-M	HQ003C	59.9t Bogie Autoballaster Hopper (Outer)	2	New	Wabtec, Doncaster	2006

Profiles ?Profiles provide an overview of the histories of various types of train. Profiles that are relevant to this TOPS class/code are listed below. If no profiles are shown, try looking under the parent code (in main details section above)
PIA/KPA Tiphook Hoppers and HQA/JJA Autoballasters

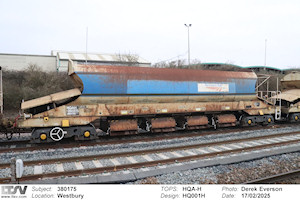

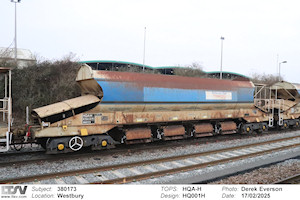

Photos - Internal
There are 157 photos of this type (including any sub-codes). The 10 most recently added are shown below.

Photos - External
No external photos of this item yet.

Listings
There are 1504 listings (with 250 distinct numbers) for this TOPS code/class (including any sub-codes).

Notes
No notes have been left yet. ?There may be some notes posted but which have not yet been approved.

Related Information
To be added

Dimensions ?Dimensions are normally recorded against design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available.
There are no dimensions recorded for this TOPS code.

Drawings ?Drawings are normally referenced to specific design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available. If no drawings are listed here, try looking at related designs/diagrams (above).
There are no drawings referenced for this TOPS code.

Data History
Record added 01/01/2020 by Thomas Young
