LTSV > Rail Data > Data > Codes > TOPS List > AB?
Main Details PDF
TOPS Code/Class: AB? Previous Next
TOPS Category: ?This is my own (unofficial) means to categorise TOPS codes based on what they relate to and whether they are long (4 characters, i.e. including sub-codes) or short (3 characters) SC - Short Code, Coaching Stock In selection ?This works on your last-used TOPS selection, including any filters and sort orders. Buttons will not show if the current TOPS code was not in your last selection, or if you are at the beginning or end of the data set.
TOPS GENKOC: ?The first character of a TOPS code is known as the GENKOC and indicates the general type of rolling stock (e.g. 1xx are DMUs). A - Passenger-carrying coaches Overall ?This works on the overall TOPS code list without any filtering or sorting applied.
TOPS BRAKTY: ?The third character of many TOPS codes is the BRAKTY, indicating the type of braking equipment fitted (e.g. A indicates air brakes). * - Not defined by code
Description: Gangwayed Corridor Brake Coach
Numbers: ?Numbers are only shown where the ranges were limited. Otherwise, refer to the listings section below. The letter r after the numbers indicates this is a range, with not all numbers in the sequence used.
Status:
Date On:
Origins:
Date Off:
Destiny:
Key Photo:
Icon:
Sub-codes ?If this code had any sub-codes, they will be listed here.
AB11 Mk.1 BFK (Corridor Brake First)
AB1A Mk.2a BFK (Corridor Brake First)
AB1B Mk.2b BFK (Corridor Brake First)
AB1C Mk.2c BFK (Corridor Brake First)
AB1D Mk.2d BFK (Corridor Brake First)
AB1Z Mk.2 BFK (Corridor Brake First)
AB21 Mk.1 BSK (Corridor Brake Second)
AB2A Mk.2a BSK (Corridor Brake Standard)
AB2C Mk.2c BSK (Corridor Brake Standard)
AB31 Mk.1 BCK (Corridor Brake Composite)
Designs/Diagrams ?Design codes and diagrams related to this code (and any sub-codes where relevant) are listed here.
43 designs/diagrams currently listed against this TOPS code/class (including any sub-codes).
DesignClassSeriesDescriptionStatus
AB101 BR TOPS Carriage Diagram Mk.1 Brake Corridor First (BFK) TBC
AB102 BR TOPS Carriage Diagram Mk.2 Brake Corridor First (BFK) TBC
AB103 BR TOPS Carriage Diagram Mk.2a Brake Corridor First (BFK) TBC
AB105 BR TOPS Carriage Diagram Mk.2c Brake Corridor First (BFK) TBC
AB106 BR TOPS Carriage Diagram Mk.2d Brake Corridor First (BFK) TBC
AB201 BR TOPS Carriage Diagram Mk.1 Brake Corridor Second (BSK) TBC
AB202 BR TOPS Carriage Diagram Mk.1 Brake Corridor Second (BSK) TBC
AB204 BR TOPS Carriage Diagram Mk.2a Brake Corridor Second (BSK) TBC
AB301 BR TOPS Carriage Diagram Mk.1 Brake Corridor Composite (BCK) TBC
AB302 BR TOPS Carriage Diagram Mk.1 Brake Corridor Composite (BCK) TBC
AB101.1D BR TOPS Carriage Design Code Mk.1 Brake Corridor First (BFK) TBC
AB101.1F BR TOPS Carriage Design Code Mk.1 Brake Corridor First (BFK) TBC
AB102.0A BR TOPS Carriage Design Code Mk.2 Brake Corridor First (BFK) TBC
AB103.0A BR TOPS Carriage Design Code Mk.2a Brake Corridor First (BFK) TBC
AB103.0B BR TOPS Carriage Design Code Mk.2a Brake Corridor First (BFK) TBC
AB103.0C BR TOPS Carriage Design Code Mk.2a Brake Corridor First (BFK) TBC
AB103.0D BR TOPS Carriage Design Code TBC
AB103.1A BR TOPS Carriage Design Code TBC
AB106.0A BR TOPS Carriage Design Code Mk.2d Brake Corridor First (BFK) TBC
AB106.0B BR TOPS Carriage Design Code TBC
AB106.1A BR TOPS Carriage Design Code Mk.2d Brake Corridor First (BFK) TBC
AB106.2A BR TOPS Carriage Design Code Mk.2d Brake Corridor First (BFK) TBC
AB106.2B BR TOPS Carriage Design Code TBC
AB106.3A BR TOPS Carriage Design Code Mk.2d Brake Corridor First (BFK) TBC
AB106.3B BR TOPS Carriage Design Code TBC
AB106.4A BR TOPS Carriage Design Code TBC
AB201.1E BR TOPS Carriage Design Code TBC
AB201.1G BR TOPS Carriage Design Code TBC
AB201.1H BR TOPS Carriage Design Code TBC
AB201.3A BR TOPS Carriage Design Code Mk.1 Brake Corridor Second (BSK) TBC
AB201.3C BR TOPS Carriage Design Code TBC
AB201.3D BR TOPS Carriage Design Code TBC
AB202.1J BR TOPS Carriage Design Code TBC
AB202.6B BR TOPS Carriage Design Code Mk.1 Brake Corridor Second (BSK) TBC
AB204.0E BR TOPS Carriage Design Code TBC
AB301.0A BR TOPS Carriage Design Code Mk.1 Brake Corridor Composite (BCK) TBC
AB301.0E BR TOPS Carriage Design Code TBC
AB301.2D BR TOPS Carriage Design Code TBC
AB301.2E BR TOPS Carriage Design Code TBC
AB302.1D BR TOPS Carriage Design Code Mk.1 Brake Corridor Composite (BCK) TBC
AB302.3F BR TOPS Carriage Design Code Mk.1 Brake Corridor Composite (BCK) TBC
AB302.3H BR TOPS Carriage Design Code TBC
AB302.5A BR TOPS Carriage Design Code TBC
Batches ?Batches of numbers built or converted to this TOPS code are listed below. Note that only codes that were wholly to this code will appear, otherwise refer to the listings section for other numbers.
There are 72 batches recorded as being wholly to this TOPS code (including any sub-codes).
Numbers Class Design Type Qty Origin Built/Converted Date/s Lot
14000-14001 AB11 161 Mk.1 Brake Corridor First (BFK) 2 New BR, Ashford/Eastleigh 1959 30148
14002-14006 AB11 161 Mk.1 Brake Corridor First (BFK) 4 New BR, Ashford/Eastleigh 1959-1960 30218
14007-14012 AB11 161 Mk.1 Brake Corridor First (BFK) 6 New BR, Ashford/Eastleigh 1960 30382
14013-14022 AB11 161 Mk.1 Brake Corridor First (BFK) 10 New BR, Swindon 1961 30668
14023-14027 AB11 161 Mk.1 Brake Corridor First (BFK) 5 New BR, Swindon 1963 30718
14028-14055 AB1Z 162 Mk.2 Brake Corridor First (BFK) 28 New BR, Derby 1966 30756
14056-14077 AB1A 163 Mk.2a Brake Corridor First (BFK) 22 New BR, Derby 1967-1968 30775
14078-14103 AB1A 163 Mk.2a Brake Corridor First (BFK) 26 New BR, Derby 1968 30786
14104-14112 AB1B 164 Mk.2b Brake Corridor First (BFK) 9 New BR, Derby 1969 30790
14113-14138 AB1C 165 Mk.2c Brake Corridor First (BFK) 26 New BR, Derby 1969-1970 30796
14139-14172 AB1D 166 Mk.2d Brake Corridor First (BFK) 34 New BR, Derby 1971-1972 30823
17000-17001 AB11 AB101 Mk.1 Brake Corridor First (BFK) 2 Renumbered - 1983
17003-17005r AB11 AB101 Mk.1 Brake Corridor First (BFK) 2 Renumbered - 1983
17007-17012r AB11 AB101 Mk.1 Brake Corridor First (BFK) 5 Renumbered - 1983
17013-17022r AB11 AB101 Mk.1 Brake Corridor First (BFK) 7 Renumbered - 1983
17023-17026 AB11 AB101 Mk.1 Brake Corridor First (BFK) 4 Renumbered - 1983
17028-17055r AB1Z AB102 Mk.2 Brake Corridor First (BFK) 25 Renumbered - 1983
17056-17077r AB1A AB103 Mk.2a Brake Corridor First (BFK) 18 Renumbered - 1983
17079-17103r AB1A AB103 Mk.2a Brake Corridor First (BFK) 24 Renumbered - 1983
17107-17109r AB1B AB104 Mk.2b Brake Corridor First (BFK) 2 Renumbered - 1983
17113-17138r AB1C AB105 Mk.2c Brake Corridor First (BFK) 25 Renumbered - 1983
17139-17172 AB1D AB106 Mk.2d Brake Corridor First (BFK) 34 Renumbered - 1983
21000-21019 AB31 171 Mk.1 Brake Corridor Composite (BCK) 20 New Metro-Cammell 1954 30006
21020-21024 AB31 172 Mk.1 Brake Corridor Composite (BCK) 5 New BR, Derby 1954 30034
21025-21059 AB31 171 Mk.1 Brake Corridor Composite (BCK) 35 New Metro-Cammell 1955 30132
21060-21091 AB31 172 Mk.1 Brake Corridor Composite (BCK) 32 New Metro-Cammell 1955 30133
21092-21118 AB31 171 Mk.1 Brake Corridor Composite (BCK) 27 New Metro-Cammell 1956 30185
21119-21133 AB31 172 Mk.1 Brake Corridor Composite (BCK) 15 New Metro-Cammell 1956 30186
21134-21168 AB31 172 Mk.1 Brake Corridor Composite (BCK) 35 New Charles Roberts 1956 30187
21169-21194 AB31 172 Mk.1 Brake Corridor Composite (BCK) 26 New Charles Roberts 1959 30424
21195-21224 AB31 171 Mk.1 Brake Corridor Composite (BCK) 30 New Metro-Cammell 1958 30425
21225-21230 AB31 171 Mk.1 Brake Corridor Composite (BCK) 6 New Charles Roberts 1959 30474
21231-21235 AB31 171 Mk.1 Brake Corridor Composite (BCK) 5 New Gloucester RCW 1960 30574
21236-21251 AB31 171 Mk.1 Brake Corridor Composite (BCK) 16 New BR, Swindon 1962 30669
21252-21262 AB31 171 Mk.1 Brake Corridor Composite (BCK) 11 New BR, Derby 1963 30731
21263-21275 AB31 172 Mk.1 Brake Corridor Composite (BCK) 13 New BR, Derby 1964 30732
34000-34094 AB21 181 Mk.1 Brake Corridor Second (BSK) 95 New BR, Derby 1952 30003
34095 AB21 181 Mk.1 Brake Corridor Second (BSK) 1 New BR, Derby 1950 30025
34096-34224 AB21 181 Mk.1 Brake Corridor Second (BSK) 129 New BR, Wolverton 1952 30025
34225-34284 AB21 181 Mk.1 Brake Corridor Second (BSK) 60 New BR, Ashford/Eastleigh 1952 30021
34285-34289 AB21 181 Mk.1 Brake Corridor Second (BSK) 5 New BR, Wolverton 1952 30032
34290-34301 AB21 182 Mk.1 Brake Corridor Second (BSK) 12 New BR, Wolverton 1953 30065
34302-34315 AB21 182 Mk.1 Brake Corridor Second (BSK) 14 New BR, Wolverton 1954 30082
34316-34371 AB21 181 Mk.1 Brake Corridor Second (BSK) 56 New BR, Wolverton 1954 30074
34372-34388 AB21 181 Mk.1 Brake Corridor Second (BSK) 17 New BR, Wolverton 1952 30032
34389-34409 AB21 181 Mk.1 Brake Corridor Second (BSK) 21 New BR, Wolverton 1954 30074
34410-34412 AB21 181 Mk.1 Brake Corridor Second (BSK) 3 New BR, Wolverton 1952 30032
34413-34450 AB21 181 Mk.1 Brake Corridor Second (BSK) 38 New BR, Wolverton 1953 30064
34451-34500 AB21 181 Mk.1 Brake Corridor Second (BSK) 50 New Gloucester RCW 1954 30060
34501-34520 AB21 181 Mk.1 Brake Corridor Second (BSK) 20 New Charles Roberts 1954 30061
34521-34584 AB21 181 Mk.1 Brake Corridor Second (BSK) 64 New BR, Wolverton 1955 30095
34585-34612 AB21 181 Mk.1 Brake Corridor Second (BSK) 28 New Gloucester RCW 1955 30141
34613-34630 AB21 182 Mk.1 Brake Corridor Second (BSK) 18 New Gloucester RCW 1955 30142
34631-34654 AB21 182 Mk.1 Brake Corridor Second (BSK) 24 New Charles Roberts 1955 30143
34655-34748 AB21 181 Mk.1 Brake Corridor Second (BSK) 94 New BR, Wolverton 1955 30156
34749-34808 AB21 182 Mk.1 Brake Corridor Second (BSK) 60 New BR, Wolverton 1955 30157
34809-34868 AB21 182 Mk.1 Brake Corridor Second (BSK) 60 New Gloucester RCW 1956 30220
34869-34880 AB21 182 Mk.1 Brake Corridor Second (BSK) 12 New Charles Roberts 1956 30223
34881-34930 AB21 182 Mk.1 Brake Corridor Second (BSK) 50 New Charles Roberts 1957 30225
34931-35023 AB21 182 Mk.1 Brake Corridor Second (BSK) 93 New Metro-Cammell 1957 30229
35024-35038 AB21 182 Mk.1 Brake Corridor Second (BSK) 15 New Gloucester RCW 1956 30232
35039-35113 AB21 181 Mk.1 Brake Corridor Second (BSK) 75 New Gloucester RCW 1957 30233
35114-35175 AB21 181 Mk.1 Brake Corridor Second (BSK) 62 New Charles Roberts 1958 30386
35176-35273 AB21 181 Mk.1 Brake Corridor Second (BSK) 98 New BR, Wolverton 1959 30427

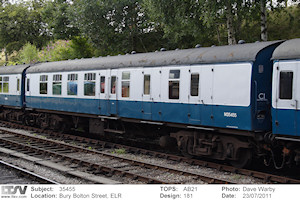

35274-35293 AB21 181 Mk.1 Brake Corridor Second (BSK) 20 New Gloucester RCW 1960 30573
35294-35400 AB21 181 Mk.1 Brake Corridor Second (BSK) 107 New BR, Wolverton 1963 30699
35401-35406 AB21 182 Mk.1 Brake Corridor Second (BSK) 6 New BR, Wolverton 1963 30700
35407-35446 AB21 181 Mk.1 Brake Corridor Second (BSK) 40 New BR, Wolverton 1963 30721
35447-35449 AB21 181 Mk.1 Brake Corridor Second (BSK) 3 New BR, Wolverton 1963 30728
35450-35499 AB21 181 Mk.1 Brake Corridor Second (BSK) 50 New BR, Wolverton 1963 30721
35500-35503 AB2A AB204 Mk.2a Corridor Brake Second (BSK) 4 Conversion - 1985-1986
35505-35518 AB2A AB204 Mk.2a Corridor Brake Second (BSK) 14 Conversion - 1992-1993
Profiles ?Profiles provide an overview of the histories of various types of train. Profiles that are relevant to this TOPS class/code are listed below. If no profiles are shown, try looking under the parent code (in main details section above)
Photos - Internal
There are 7 photos of this type (including any sub-codes).

Photos - External
No external photos of this item yet.
Listings
There are 273 listings (with 215 distinct numbers) for this TOPS code/class (including any sub-codes).


Notes
No notes have been left yet. ?There may be some notes posted but which have not yet been approved.
Related Information
To be added
Dimensions ?Dimensions are normally recorded against design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available.
There are no dimensions recorded for this TOPS code.
Drawings ?Drawings are normally referenced to specific design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available. If no drawings are listed here, try looking at related designs/diagrams (above).
There are no drawings referenced for this TOPS code.
Data History
Record added 01/01/2020 by Thomas Young
